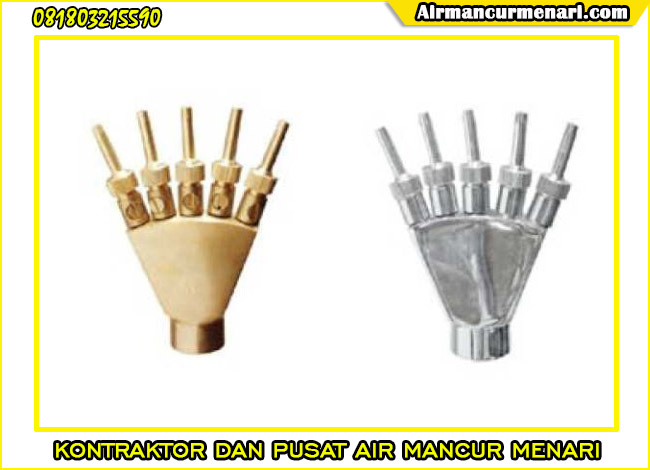

Spesifikasi Nozzle dan Deskripsi :
No | Name | Spesifikasi |
1 | Product Name | Phoenix Tale nozzle |
2 | Material | Brass / Phoenix |
3 | Thread | FNPT Brass / stainless steel Phoenix Tale Fountain Jet Nozzle |
4 | Water Flow Rate | 2 – 10m3/h |
5 | Pressure | 50 – 150Kpa |
6 | High Light | Parabolic Dancing Fountain Nozzles, 3/4″ brass fountain nozzles |
7 | Water Inlet | 3/4″, 1″, 1.5″ Brass Phoenix Tale Fountain Jet Nozzle |
8 | Water Spray High | 2 – 4m |
9 | Water Spray Diameter | Parabolic |
10 | Item Weight | 0.5 – 1Kg |

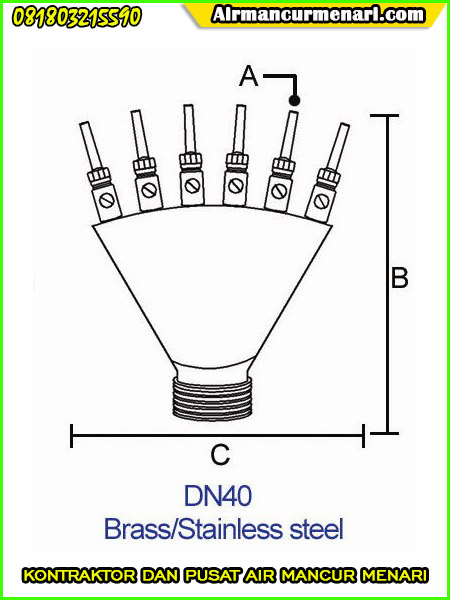

Ukuran diameter Phoenix Tale Nozzle :
Table diameter sheet :
Remarks | Specifications | ||
DN40 | DN25 | DN20 | |
A (mm) | 4*7 | 4*7 | 4*5 |
B (mm) | 177 | 180 | 131 |
C (mm) | 135 | 156 | 90 |
DATA TEKNIS
Code | Model | Connections (G) | Pressure (Kpa) |
Discharge (m3/h) | Height (mm) |
012140 | SFwT40 | 1 ½” | 50-150 | 7-10 | 2-4 |
012141 | SFwT25 | 1″ | 50-150 | 5-8 | 2-3 |
012142 | SFwT20 | ¾” | 50-150 | 2-4 | 2-3 |

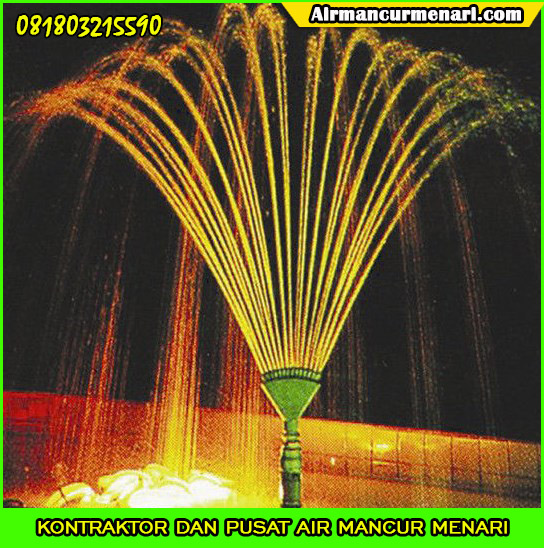

Pengaplikasian Nozzle air Mancur:
